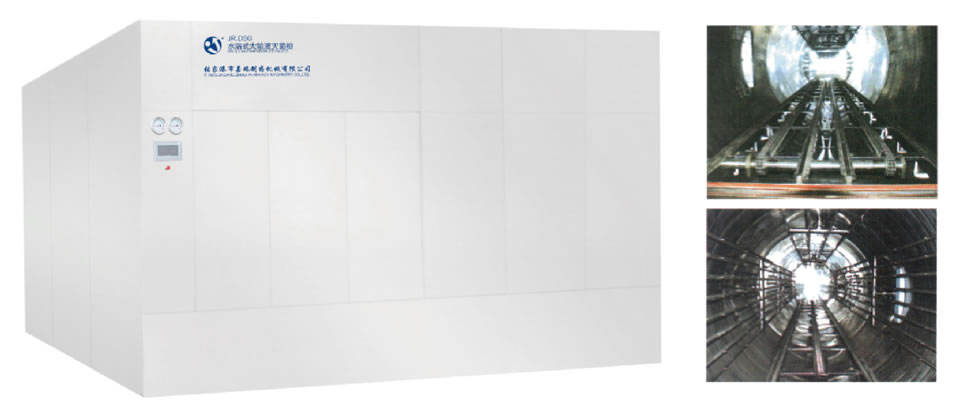

該系列水浴式滅菌柜利用過熱循環水作為滅菌加熱載體,對物品進行水淋式滅菌操作。在整個工作過程中,過熱水運 行于一個相對封閉的循環系統。該設備具有溫度均勻性好、溫度調控范圍寬(60-134℃)等一系列優點,并且有效防止工作 過程中的二次污染。該設備能廣泛應用于制藥行業對玻璃瓶裝、安瓿瓶裝、塑料瓶裝、塑料軟袋等液體進行高、低溫滅菌 操作,同時也適合用于食品行業對各種密封包裝、飲用液、罐頭食品進行高低溫滅菌操作。
本機可選用計算機進行全過程監控。各種參數能進行修改,實時記錄及打印輸出,極大的提高了整機的可靠性和智能 化,使其能更好地適合于現代企業自動化生產的需要。
This series of water bath sterilization cabinet uses superheated circulating water as sterilization heating carrier to carry out water spray sterilization operation on items. During the entire working process, the superheated water runs in a relatively closed circulation system. The equipment has a series of advantages such as good temperature uniformity, wide temperature control range (60-134℃), and effectively prevent secondary pollution in the working process. The equipment can be widely used in the pharmaceutical industry for high and low tempera- ture sterilization of glass bottles,ampoules, plastic bottles, plastic soft bags and other liquids, but also suitable for the food industry for various sealed packaging, drinking liquid, canned food for high and low temperature sterilization operation.
The machine can choose the computer to monitor the whole process. Various parameters can be modified, recorded and printed out in real time, greatly improving the reliability and intelligence of the whole machine, so that it can be better suited to the needs of modern enterprise automated production.
●主體內膽為優質304不銹鋼,自動焊接一次成形。全不銹鋼拉 絲板裝飾外罩。具有標準GMP驗證接口, 方便用戶隨時進行設備驗證。
●控制系統采用德國西門子PLC,觸摸屏(可選配計算機控制), 微型打印機系統??刂葡到y(tǒng)穩定,控制溫度精確。并具有完善的數據記錄,打印,保存。
●管路系統采用美國ASCO氣動閥和納西姆真空泵等最優化配置。
●設備可選配自動進出柜系統,減輕工人的勞動強度。
● The chamber of the main body is high quality 304 stainless steel, which is automatically welded and formed once . All stainless steel wire-brushed panels trim the outer cover. With standard GMP authentication interface, it is convenient for users to verify equipment at any time.
● Control system using Germany Siemens PLC, touch screen (optional computer control), micro printer system. The control system is stable and the temperature is accurate. And it has perfect data recording, printing, saving functions.
● The piping system adopts the optimal configuration of ASCO pneu- matic valve and Nassim vacuum pump.
● The equipment can be optional automatic access cabinet system to reduce the labor intensity of workers.
型號? Model |
玻璃瓶 Glass?Bottle |
塑料瓶 Plastic?Bottle |
軟袋裝 For Soft?Bag |
||||||
100ml | 250ml | 500ml | 100ml | 250ml | 500ml | 100ml | 250ml | 500ml | |
JR.DSG-10 | 10800 | 5880 | 3402 | 7938 | 4590 | 3150 | 3240 | 2700 | 1620 |
JR.DSG-13 | 14400 | 7840 | 4536 | 10584 | 6120 | 4200 | 4320 | 3600 | 2160 |
JR.DSG-16 | 18000 | 9800 | 5670 | 13230 | 7650 | 5250 | 5400 | 4500 | 2700 |
JR.DSG-19 | 21600 | 11760 | 6804 | 15876 | 9180 | 6300 | 6480 | 5400 | 3240 |
JR.DSG-22 | 25200 | 13720 | 7938 | 18522 | 10710 | 7350 | 7560 | 6300 | 3780 |
JR.DSG-25 | 28800 | 15680 | 9072 | 21168 | 12240 | 8400 | 8640 | 7200 | 4320 |
JR.DSG-32 | 36000 | 19600 | 11340 | 23814 | 13770 | 9450 | 10800 | 9000 | 5400 |
JR.DSG-40 | 44800 | 24192 | 13248 | 32928 | 19584 | 12000 | 13440 | 11200 | 8960 |
注:以上裝載量僅供參考,實際裝載量會因裝載方式、瓶子規格尺寸而有所不同。
Note: The above loading amount is for reference only, the actual loading amount will vary according to the loading method and bottle specifications.
設計壓力 Design?Pressure |
0.3MPa | 蒸汽源壓力 Steam Source?Pressure |
0.4-0.6MPa |
設計溫度 Design Temperature |
144?℃ | 水源壓力 Water Source?Pressure |
0.1?-0.3MPa |
工作溫度 Working Temperature |
60-134?℃ | 壓縮空氣壓力 Compressed?Air Pressure |
0.5-0.7MPa |
熱均勻度??? Heat?Equilibrium |
≤±1?℃ | 純水 Soft Water Pressure |
0.1-0.3MPa |
型號 Model |
內室尺寸 Chamber Size?LxWxH(mm) |
外型尺寸 Overall?Dimensions LxWxH(mm) |
蒸汽耗量 Steam Consumption (kg/cycle) |
水耗量 Water Consumption (kg/cycle) |
功率 Power(kw) |
重量 Weight(kg) |
JR.DSG-10 | 3200xФ2000 | 3580X4100X2700 | 500 | 550 | 12 | 7500 |
JR.DSG-13 | 4200xФ2000 | 4580X4100X2700 | 600 | 650 | 12 | 8500 |
JR.DSG-16 | 5200xФ2000 | 5580X4100X2700 | 700 | 750 | 15 | 9500 |
JR.DSG-19 | 6200xФ2000 | 6580X4100X2700 | 850 | 900 | 20 | 10500 |
JR.DSG-22 | 7200xФ2000 | 7580X4100X2700 | 1100 | 1050 | 25 | 11500 |
JR.DSG-25 | 8200xФ2000 | 8580X4100X2700 | 1200 | 1250 | 25 | 12500 |
JR.DSG-32 | 10200xФ2000 | 10580X4100X2700 | 1400 | 1700 | 35 | 13500 |
JR.DSG-40 | 8360xФ2500 | 8750X5200X3200 | 1900 | 2350 | 40 | 18500 |
注:以上外形尺寸、內室尺寸和滅菌車數量均指玻璃瓶滅菌柜,軟袋滅菌柜尺寸略有不同。
Note: The above dimensions, interior dimensions and number of sterilization vehicles refer to the glass bottle sterilization cabinet, and the size of the soft bag sterilization cabinet is slightly different.
