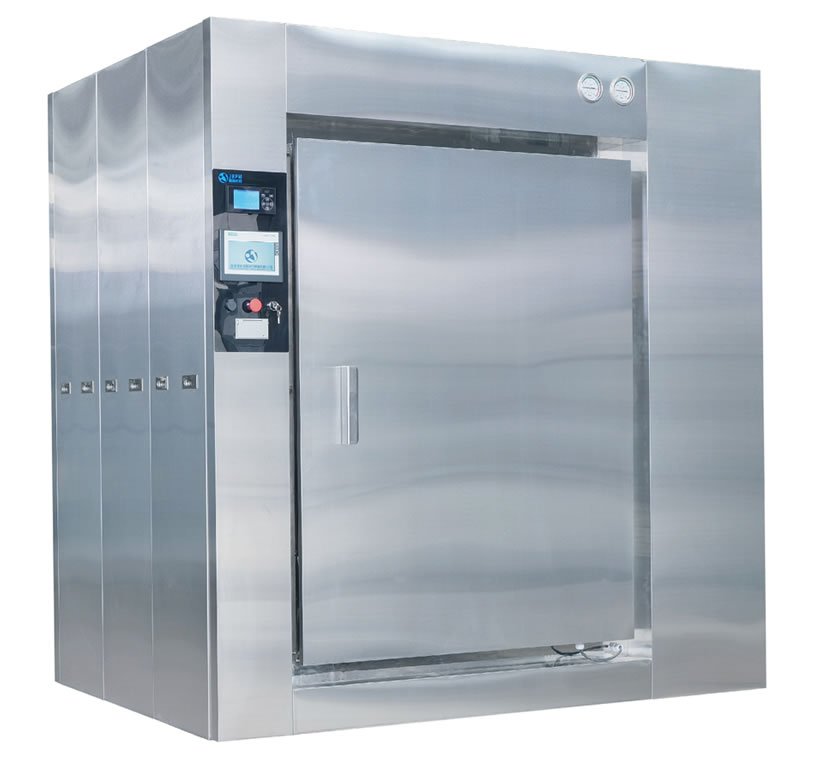

低溫真空干燥箱

Low-temperature Vacuum Drying Oven

低溫真空干燥箱

產品概述

Product Overview

此系列低溫真空干燥箱適用于在高溫下易分解、聚合或變質的熱敏性物料的干燥。在干燥前可進行消毒處理、干燥過 程中無任何不純物混入物料,在制藥、食品、化工、電子等行業廣泛應用。
將被干燥物料處于真空條件下,進行加熱干燥,低溫真空干燥箱是利用真空泵進行抽氣抽濕,加快了干燥速率。當加 熱溫度恒定, 提高真空度, 能加快干燥速率。當真空度恒定, 提高加熱溫度, 能加快干燥速率。既提高真空度, 又提高加 熱溫度,則大大加快干燥速率。
This series of low temperature vacuum drying oven is suitable for drying heat-sensitive materials that are easy to decompose, polymerize or deteriorate at high temperatures. It can be disinfected before drying, and no impurity is mixed into the material during the drying process, which is widely used in pharmaceutical, food, chemical, electronics and other industries.
The material to be dried is heated and dried under vacuum conditions. The low-temperature vacuum drying oven uses a vacuum pump to pump air and moisture, which speeds up the drying rate. When the heating temperature is constant and the vacuum degree is increased, the drying rate can be accelerated. When the vacuum degree is constant, increasing the heating temperature can speed up the drying rate. If the vacuum degree is increased and the heating temperature is increased, the drying rate is greatly accelerated.

結構 ·性能 ·特點

Stucture&Capability&Characteristics

●系統通過控制供熱-真空達到平衡,使物料全程處于不溢盤(有監控)的中度~高度沸騰狀態;
●物料在沸騰狀態下干燥,浸膏塊處于疏松多孔狀態,粉碎后,細粉堆密度較小,更容易溶解;
●干燥箱通過加熱板層的設計,比傳統真空箱有更大的加熱面積,加熱更均勻;
●為便于每一處物料都能同步干燥,它在設計上對加熱料用器皿\加熱板層的平整度要求更高:
●低溫真空干燥箱采用壓縮氣體形成“氣針/氣刀”有效刺破/切破結皮,加快濃縮進程,避免爆沸造成的溢盤逃料;
●側面多通道抽真空/補氣,使系統內的真空,在使用板層加熱后,依然均勻,同時有效避免了冷凝水回流至物料內,造成 局部不干燥而影響干燥速度;
●可選配 CIP 清洗系統(帶蒸汽潤洗、浸泡、噴淋等多種清洗模式)。
● The system achieves balance by controlling heat-vacuum, so that the material is in a moderate to high boiling state without overflow (monitored) throughout the whole process;
● The material is dried in the boiling state, and the extract block is in a loose and porous state. After crushing, the density of the fine powder pile is smaller and easier to dissolve;
● Through the design of heating plate, the drying box has a larger heating area and more uniform heating than the traditional empty box;
● In order to facilitate the synchronous drying of each material, it has higher requirements for the flatness of the heating material utensils \ heating plate layer in the design:
● The low-temperature vacuum drying oven uses compressed gas to form a "gas needle/gas knife" to effectively puncture/cut the crust, speed up the concentration process, and avoid the overflow caused by explosion and boiling;
● Side multi-channel vacuum/aeration, so that the vacuum in the system, after the use of plate heating, is still uniform, and effectively avoid condensation water back into the material, causing local drying and affecting the drying speed;
● Optional CIP cleaning system (with steam washing, soaking, spraying and other cleaning modes).

技術參數

Technical Parameter

型號
Model
內室尺寸??
Chamber Size?LxWxH(mm)
外型尺寸
Overall?Dimensions
LxWxH(mm)
烘架層數
The?Layer Number?Of?Drying?Rack(Cycle)
功率????
Power(kw)
重量
Weight(kg)
JR.DZG-1.2(12) 1500x750x1100 1780x1480x2000 6 4.5 2500
JR.DZG-2.0(24) 1150x1000x1770 1430x1800x2470 12 6.0 3250
JR.DZG-3.0(36) 1660x1000x1770 1940x1800x2470 12 8.0 4300
JR,DZG-3.8(48) 2150x1000x1770 2430x1800x2470 12 8.0 4900
JR.DZG-5.8(72) 3280x1000x1770 3560x1370x2470 12 8.0 6200
JR.DZG-7.5(96) 4200x1000x1770 4480x1370x2470 12 11.5 7600
